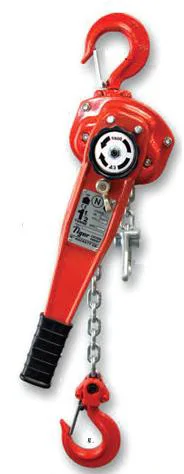

Tiger Lever Hoists
The Tiger lever hoists lightweight, compact and rugged construction with the handle, gear case and brake cover made entirely of pressed steel, producing strong resistance to impact damage. Using only the highest quality materials precisely machined throughout ensures the Tiger ratchet lever hoist is the ideal hoist for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004
Download PDF specification sheet
Prices Shown are for standard 1.5mtr Height of Lift
Tiger lever hoists can be supplied with a height of lift to suit your requirements, please contact us for further details on lengths not offered on our website.
Tiger Lever Hoists Main Features
- Range from 250kg – 10000kg
- Rugged steel body construction
- Lightweight and portable
- 360 degree handle rotation
- Short stroke and low lever pulling effort
- Easy single-hand "freewheeling" operation
- Drop forged & heat treated alloy hooks
- High quality alloy calibrated load chain
- Safe reliable twin pawl mechanical brake
- Guaranteed light load protection
- Heat treated alloy steel triple spur gears and pinion shaft
- Heavy duty chain end stop
- Operating temperature of -50°C to +50°C
- Proof tested to 1.5 times rated capacity
- 1.5m height of lift as standard but can be chained to exact requirements
- Individual spares readily available
Safety Brake
The highly efficient twin pawl brake, works instantly when the operation is stopped and securely holds the load. Designed and 100% tested to hold a 2% load of the rated capacity. The bonded friction discs are free of asbestos and achieve highly efficient braking.
Load Chains
Tiger only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V)
Hooks
Drop forged and heat treated alloy hooks on all Tiger lever hoists are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.
Grease
High performance premium quality grease allows the Tiger lever hoists to be certified for use within a temperature range of -50°C to +50°C far exceeding the requirements of current standards.
Chain end stops
User friendly heavy duty end stops make it easy for the operator to position the chain whilst "freewheeling" but most importantly gives complete compliance to all known standards.
Mechanical Efficiency
All major components on the tiger lever hoists are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.
Finish
The Tiger lever hoists are finished in our high quality powder coat paint offering excellent corrosion protection.
Proof Load Tests
Every Tiger lever hoist is fully tested to 1.5 times its rated capacity.
Related Tiger Products

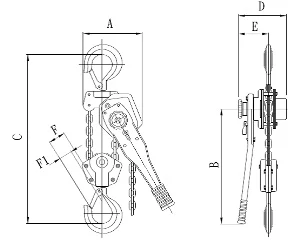

| Product Code | Capacity (tonnes) | Effort (kg) | A | B | C | D | E | F | F1 | Load Chain Diameter (mm) | Load Chain No. of Falls | Standard HOL (Mtr) | Mass kg @ std HOL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RLH250T | 0.25 | 30 | 60 | 156 | 245 | 82 | 63 | 27 | 22 | ø4.0 | 1 | 1.5 | 2.2 |
| RLH500T | 0.5 | 34 | 75 | 276 | 270 | 100 | 75 | 30 | 26 | ø5.0 | 1 | 1.5 | 3,9 |
| RLH750T | 0.75 | 22 | 128 | 240 | 275 | 158 | 99 | 30 | 26 | ø6.3 | 1 | 1.5 | 7.2 |
| RLH1500T | 1.5 | 26 | 154 | 360 | 320 | 172 | 104 | 38 | 34 | ø7.1 | 1 | 1.5 | 10.1 |
| RLH3000T | 3.0 | 38 | 182 | 360 | 400 | 195 | 108 | 43 | 38 | ø10.0 | 1 | 1.5 | 18.0 |
| RLH6000T | 6.0 | 40 | 242 | 360 | 570 | 195 | 108 | 57 | 52 | ø10.0 | 2 | 1.5 | 28.0 |
| RLG10000T | 10.0 | ? | 370 | 360 | 630 | 195 | 108 | 71 | 56 | ø10.0 | 3 | 1.5 | 42.4 |
