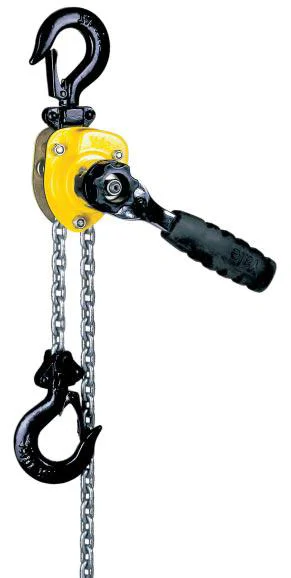

Yale Handy Lever Hoist
This hoist is the smallest, lightest Yale ratchet lever hoist for professional applications. Due to the multitude of application possibilities this new ratchet lever hoist is an indispensable tool e.g. in industry, trade and service. The extreme low tare weight and the very compact design make the hoist easy to use even in confined working conditions. The enclosed design protects the internal parts against the ingress of dust, foreign particles and corrosion.
The short and ergonomic hand lever makes the hoist easy to operate. The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions. The drop forged suspension and load hooks that yield under overload instead of breaking are made from nonageing, high tensile alloy steel. The hooks are fitted with robust safety latches and are free to rotate 360°.
All parts of the disc type load brake are manufactured from high quality materials and are corrosion protected.
| Part Number | Safe Working Load (kgs) |
| YLH/HANDY250 | 250 |
| YLH/HANDY500 | 500 |
The Yale Ratchet Lever Hoist can be supplied with a height of lift to suit your requirements, please contact us for further details.
HOL = Height of Lift
| Capacity (kg) | Number of Chain Falls | Chain Dimensions (d x p in mm) | Lift With One Full Turn of Lever Hoist (mm) | Handle Pull at WWL (daN) | Weight With Standard Lift 1.5Mtr (kg) |
|---|---|---|---|---|---|
| 250 | 1 | 4 x 12 | 80 | 25 | 2.2 |
| 500 | 1 | 4 x 12 | 40 | 25 | 2.8 |
Related Products

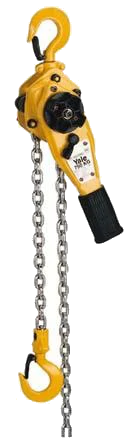

Yale PT Lever Hoist
The new generation of ratchet lever hoists model PT features improved techniques and ergonomical styling. The advantages of the predecessor range have been maintained and further optimized.
The proven stamped steel housing provides extremely low weight without limiting the reliability and sturdiness of the unit.
The free chaining device is standard, low handle pull in spite of increased capacities as well as small hook-to-hook dimensions are further outstanding features.
Optional
All models can be optionally equipped with an overload prevention device in the form of a slip clutch which is factory preset to approx. 25 % ±15 % overload.
The Yale Ratchet Lever Hoist can be supplied with a height of lift to suit your requirements, please contact us for further details.
HOL = Height of Lift
| Capacity (kg) | Number of Chain Falls | Chain Dimensions (d x p in mm) | Lift With One Full Turn of Lever Hoist (mm) | Handle Pull at WWL (daN) | Weight With Standard Lift 1.5Mtr (kg) |
| 800 | 1 | 5,6 x 17,1 | 24 | 26 | 5.5 |
| 1600 | 1 | 7,1 x 21,2 | 23 | 30 | 9.6 |
| 3200 | 1 | 9 x 27,2 | 16 | 38 | 16 |
| 6300 | 2 | 9 x27,2 | 8 | 39 | 31 |
Slip clutch
Slip clutches fitted to Yale lever hoists reliably ensure that lever hoists are not subject to overloads during operation. When a pre-defined/adjustable overload value is reached the component parts of the slip clutch, in accordance with engineering principle of the slip clutch, slide against each other and prevent a further overloading of the lever hoist. When the slip clutch operates the load is still held secure by the independent load brake. Thus, the slip clutch provides double safety: firstly it protects the operator from applying a mis-judged prohibited overload and secondly it increases the working life of the lever hoist.
