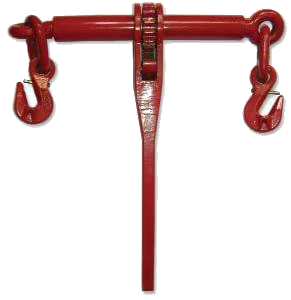

• Meets the performance requirements of EN 12195 Part 3.
• Drop forged, alloy steel, quenched and tempered.
• Painted finish.
• Fitted with reinforced hooks and special safety devices.
• Minimum breaking load is 2 times the lashing capacity.
• Marked with size, lashing capacity and manufacturers mark.
| Part Number | Chain Size | Length (a) | Dia. (b) | Thickness (c) | Length Barrel (d) | Length Open (e) | Length Closed (f) | Width (g) | TakeUp | Lashing Capacity | Proof Load | Minimum Breaking Load | Weight per Piece |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (tonnes) | (tonnes) | (tonnes) | (kg) | |
| 11-1008 | 8 | 355 | 66 | 16 | 252 | 742 | 573 | 11 | 169 | 4.0 | 5.0 | 8.0 | 4.5 |
| 11-1010 | 10 | 355 | 66 | 16 | 252 | 789 | 620 | 13 | 169 | 6.3 | 7.9 | 12.6 | 5.4 |
| 11-1013 | 13 | 355 | 66 | 16 | 252 | 866 | 703 | 17 | 163 | 10.0 | 12.5 | 21.2 | 7.7 |
| 11-1016 | 16 | 355 | 66 | 16 | 252 | 892 | 733 | 20 | 159 | 16.0 | 20.0 | 32.2 | 10.2 |

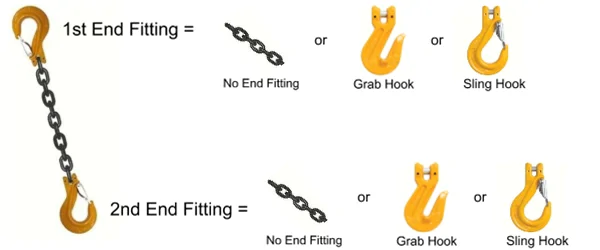

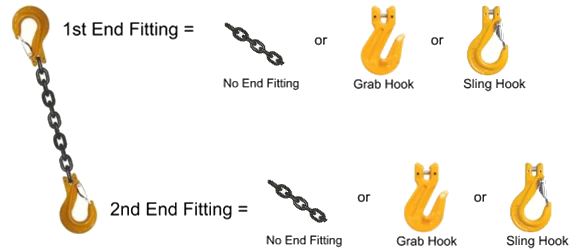

CHAIN GRADE 80 BSEN818-2 (Lashing Equipment - BSEN 12195-3)
| Part Number | Chain Size | Lashing Capacity | Weight per Mtr (Excluding end Fittings) |
|---|---|---|---|
| (mm) | (tonnes) | (kg) | |
| 11-1108 | 8 | 4.0 | 4.5 |
| 11-1110 | 10 | 6.3 | 5.4 |
| 11-1113 | 13 | 10.0 | 7.7 |
| 11-1116 | 16 | 16.0 | 10.2 |
8mm Grade 80 Load Binder Chain
Lashing Capacity: 4Tonne
10mm Grade 80Load Binder Chain
Lashing Capacity: 6.3Tonne
13mm Grade 80Load Binder Chain
Lashing Capacity: 10Tonne
16mm Grade 80Load Binder Chain
Lashing Capacity: 16Tonne
