Main Features

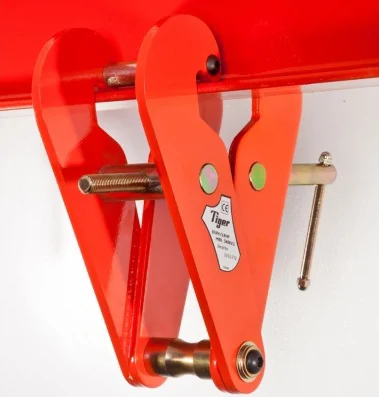

- The Tiger heavy duty beam clamp is suitable for attachment to steel
beams as a semi-permanent lifting point - The beam clamp is fitted with a screw spindle which allows easy
adjustment and high clamping force to the various flange sizes within its
capacity - Low headroom because of the built in suspension bar
- Safety factor up to 5 times SWL
- Range from 1.0t to 5.0t

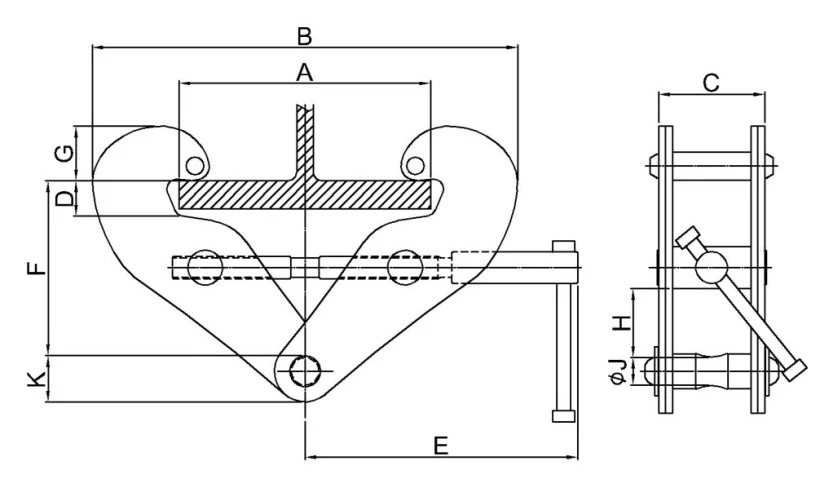

| Product Code | Capacity (tonnes) | A | B | C | D | E | F | G | øJ | K | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BC1000T | 1.0 | 72-210 | 182-328 | 77 | 26 | 190 | 144-177 | 52-38 | ø20 | 34 | 4.0 |
| BC2000T | 2.0 | 72-210 | 182-328 | 85 | 26 | 190 | 144-177 | 52-38 | ø20 | 34 | 4.6 |
| BC3000T | 3.5 | 73-305 | 214-460 | 107 | 35 | 240 | 224-179 | 58-40 | ø22 | 42 | 8.4 |
| BC5000T | 5.0 | 73-305 | 214-460 | 121 | 35 | 240 | 220-175 | 58-40 | ø28 | 45 | 10.2 |
