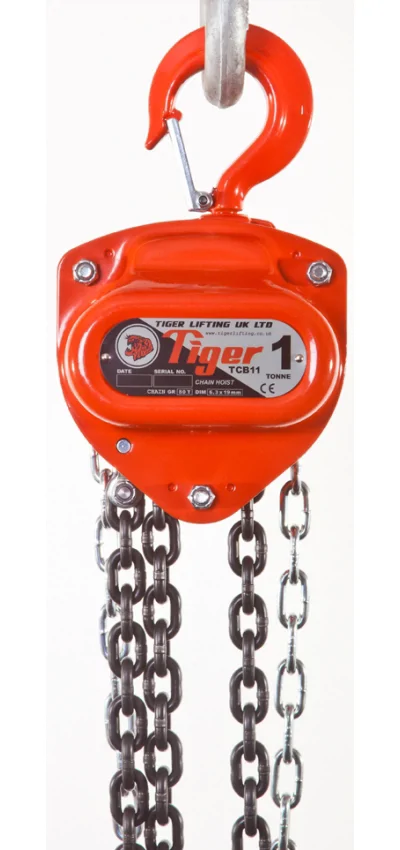

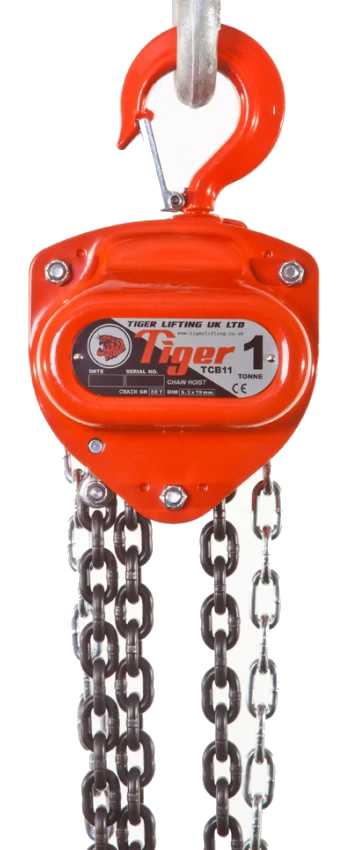

Main Features
- Range from 500kg – 20000kg
- Rugged steel body construction
- Lightweight and portable
- Double cover protection for brake chamber
- Drop forged & heat treated alloy hooks
- High quality alloy calibrated load chain
- Safe reliable twin pawl mechanical brake
- Guaranteed light load protection
- Heat treated alloy steel triple spur gears and pinion shaft
- Operating temperature of -50°C to +50°C
- Proof tested to 1.5 times rated capacity
- Can be chained to meet your exact requirements
- Individual spares readily available
Safety Brake
The highly efficient twin pawl brake works instantly when the operation is stopped and securely holds the load. Loads are lowered under perfect control, allowing for precise operations. The Tiger chain block passes easily the "brake lock out test" as per BS 3243 with a 5% load of the rated capacity.
Double Cover Protection
Both the hand chain wheel cover and the ratchet brake cover are designed to offer protection to the brake chamber in the harshest environments from foreign objects.
Load Chains
Tiger only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V)
Hooks
Drop forged and heat treated alloy hooks are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.
Grease
High performance premium quality grease allows the Tiger chain block to be certified for use within a temperature range of -50°C to +50°C, far exceeding the requirements of current standards.
Chain end stops
Will hold a load of at least 2.5 times the rated capacity when supporting the full load without restraint from other components e.g. brake or gearing. This prevents accidents, by acting as a stop when the lift length of the load chain is exceeded when lowered.
Mechanical Efficiency
All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.
Convertibility
The Tiger chain block can be easily converted to have Load Limiters fitted. The top hook can be replaced by a competent person so the Tiger chain block can be directly fitted to our beam trolley range of the equivalent capacity achieving the lowest possible headroom.
Finish
The Tiger chain block is finished in our high quality powder coat paint offering excellent corrosion protection.
Proof Load Tests
Every chain block is fully tested to 1.5 times its rated capacity.

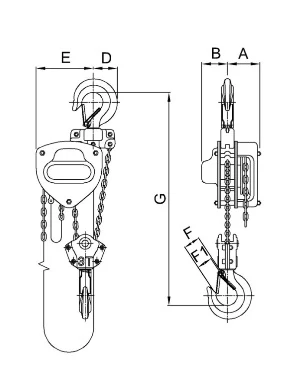

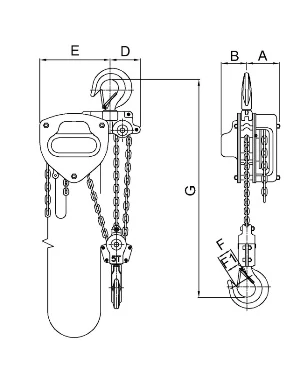

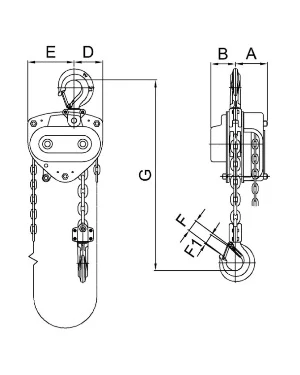

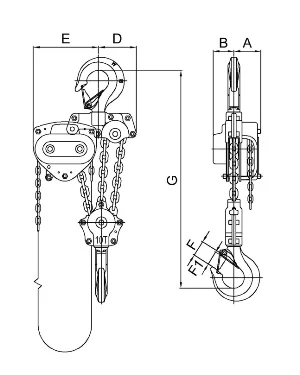

| Product Code | Capacity (tonnes) | Effort (kg) | A | B | D | E | F | F1 | G | Load Chain Diameter (mm) | Load Chain No. of Falls | Standard HOL (Mtr) | Mass kg @ std HOL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CBH500T | 0.5 | 21 | 89 | 67 | 50 | 80 | 30 | 26 | 305 | ø6.3 | 1 | 3 | 10.8 |
| CBH1000T | 1.0 | 25 | 89 | 67 | 63 | 87 | 33 | 28 | 340 | ø6.3 | 1 | 3 | 12.0 |
| CBH1500T | 1.5 | 32 | 93 | 73 | 75 | 105 | 38 | 34 | 385 | ø7.1 | 1 | 3 | 16.3 |
| CBH2000T | 2.0 | 34 | 98 | 77 | 85 | 115 | 43 | 38 | 420 | ø8.0 | 1 | 3 | 20.6 |
| CBH2000LT | 2.0 | 32 | 93 | 73 | 75 | 105 | 43 | 38 | 399 | ø7.1 | 1 | 3 | 16.5 |
| CBH3000T | 3.0 | 38 | 109 | 84 | 98 | 157 | 43 | 38 | 550 | ø10.0 | 1 | 3 | 32.5 |
| CBH3000TT | 3.0 | 34 | 93 | 73 | 60 | 150 | 43 | 38 | 465 | ø7.1 | 2 | 3 | 24.8 |
| CBH5000T | 5.0 | 37 | 98 | 77 | 120 | 210 | 57 | 52 | 575 | ø8.0 | 3 | 3 | 39.0 |
| CBH10000T | 10.0 | 40 | 109 | 84 | 153 | 263 | 60 | 54 | 660 | ø10,0 | 3 | 3 | 62.3 |
| CBH20000T | 20.0 | 43 | 160 | 90 | 140 | 350 | 90 | 70 | 1050 | ø10.0 | 6 | 3 | 180.0 |
