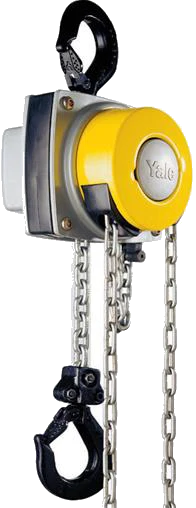

Yale "YaleLift 360" Hand Chain Hoist with Top Hook Suspension
Range from 500kg to 20,000kg
With our innovative new design the Yalelift 360 chain block opens up a new world of safety for the operator. The range of applications as well as the operating conditions have been changed by a revolutionary hand chain guide system.

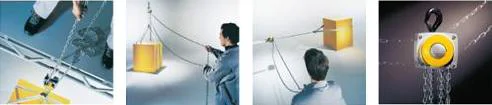

The key to this innovation is our revolutionary 360 degree rotating hand chain guide which allows operation of the hand chain from virtually any position, even in extremely confined areas. The Yalelift 360 chain block can be operated at the side of the load or from any other position including horizontal pulling.
The plane between top and bottom hook must always be in a straight line.
More flexibility gives greater safety - operators can now work outside of the immediate danger zone reducing the risk of operator injury.
The special load brake eliminating the conventional 'ratchet and pawl' mechanism used in other manual hoists, results in less maintenance.
Yalelift 360 Hand Chain Hoist - Order Online
| Capacity (tonne) | Number of Chain Falls | Chain Dimensions (d x p in mm) | Hand Chain Overhaul For 1Mtr Lift (m) | Pull On Hand Chain at WWL (daN) | Weight With Standard Lift 3Mtr (kg) |
| 0.5 | 1 | 5 x 15 | 30 | 21 | 9 |
| 1 | 1 | 6 x 18 | 49 | 30 | 13 |
| 2 | 1 | 8 x 24 | 71 | 32 | 20 |
| 3 | 1 | 10 x 30 | 87 | 38 | 29 |
| 5 | 2 | 10 x 30 | 174 | 34 | 38 |
| 10 | 3 | 10 x 30 | 261 | 44 | 71 |
| 20 | 6 | 10 x 30 | 522 | 2 x 44 | 196 |
