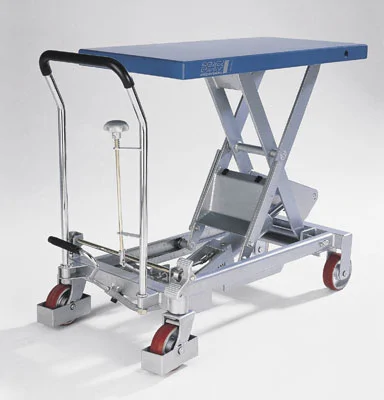

Pfaff-Silberblau Scissor Lift Tables
Lifting capacities 150kgs - 750kgs
Workshop platform with adjustable height, suitable for manufacturing, packing and workshop applications.
Features include: -
• Five models offering 150kgs - 750kgs lifting capacity and 220 - 1000mm lift heights.
• Hydraulic foot pump lifts the table with minimal effort.
• Hand-wheel operated hydraulic valve precisely and safely lowers load.
• Lockable wheel feature for added stability and safety.

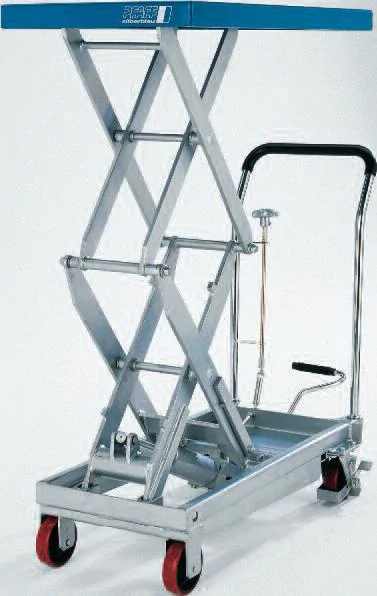

• HX-D 0350 offers double-scissor feature.
• HX-D 0350 has greater lifting potential, up to 1.3mtrs.
| Type & SWL | Platform Size | Min Platform Heigth | Max Pltform Height | Weight |
|---|---|---|---|---|
| SLT/HX150 150Kgs | 700mm x 450mm | 220mm | 720mm | 49kg |
| SLT/HX300 300kgs | 850mm x 500mm | 285mm | 880mm | 78kg |
| SLT/HX500 500kgs | 850mm x 500mm | 285mm | 880mm | 82kg |
| SLT/HX750 750kgs | 1000mm x 510mm | 420mm | 1000mm | 120kg |
| SLT/HXD0350 350kgs | 910mm x 500mm | 370mm | 1300mm | 136kg |
