Eclipse Ultralift TP Lifting Magnets

___________________________________________

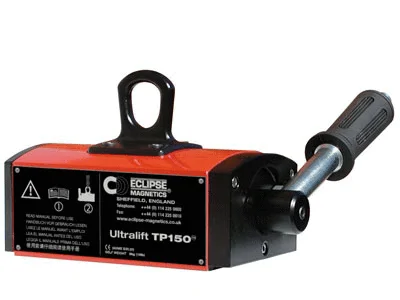

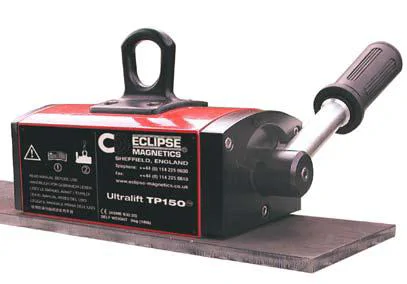

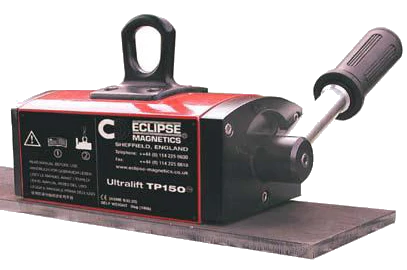

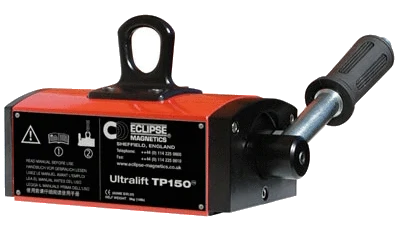

Ultralift TP Lifting Magnet

DESIGNED FOR THIN PLATE LIFTING

Why thin plat lifters?

Thin plate cannot accept the magnetism from standard lifting magnets.

Using standard lifters on thin plate will result in

• Dramatically reduced performance
• Picking multiple sheets
• Un-safe lifts

Ultralift TP Offers

• A Lifter designed for thin plate lifting - offering safe lifting
• SWL based on the material thickness
• Guaranteed lifting of single plates
• Simple quick operation
• Two size in the range: TP150 and TP300. Larger plates will require two lifters on a spreader beam.

Spreader Beams

Liftsafe Solutions Ltd supply a range of spreader beams. These ensure safe lifts are made at all times on longer products. We also supply equipment for allowing the lifting magnet to lift through 90 degrees.

OPERATING INSTRUCTIONS

• The lifter is in the off position.

• To switch the lifter ON - Rotate the handle 120 degrees anti-clockwise. Ensure the lever is securely locked in place before commencing with lift.

• The lifter is in the ON position.

• To switch the lifter off - Return the load to the floor or support. Depress the plunger on the handle and rotate 120 degrees clockwise to its stop position.

• Release the plunger to complete the switching process.
