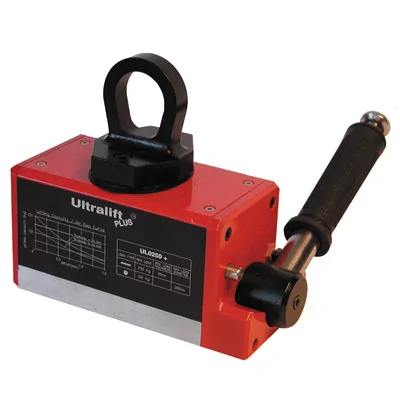

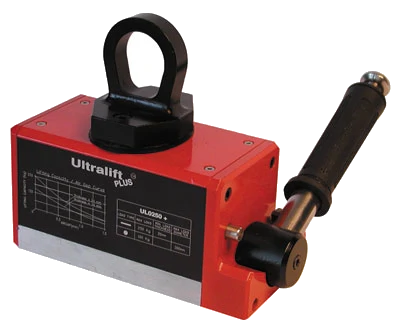

Ultralift Plus Lifting Magnet
- Safety Catch - The safety catch locks the handle in the `on` position, providing a robust and positive lock to the lifter mechanism.
- Lifting Eye - Complements the safety catch. Once the lifting eye is in tension with the load, the mechanism locks the handle ensuring the magnet cannot be released by accident.
- Hand Brake Release - The magnet can be released simply, using one hand.
- Safety Shim - The Eclipse Magnetics Ultralift Plus is the only permanent magnet lifter to come complete with a `safety shim`international patented. Allows pre-testing of the load to be lifted irrespective of weight, material type, material thickness and surface condition. If the load passes a 3:1 safety factor is guaranteed.
Model No. | Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Flat SectionSWL(kg) | Flat SectionThickness(mm) | Round SectionLength Max(mm) | Round SectionSWL(kg) | Round SectionDiameter Max(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
ULO125+ | 4 | 101 | 155 | 69 | 74 | 64 | 152 | 125 | 20 | 1500 | 50 | 200 |
ULO250+ | 11 | 155 | 214 | 92 | 96 | 94 | 218 | 250 | 25 | 1500 | 100 | 300 |
ULO500+ | 27 | 224 | 300 | 122 | 128 | 123 | 266 | 500 | 30 | 1500 | 200 | 400 |
ULO1000+ | 63 | 260 | 359 | 176 | 174 | 149 | 391 | 1000 | 45 | 1500 | 400 | 450 |
ULO2000+ | 157 | 368 | 477 | 233 | 227 | 195 | 493 | 2000 | 70 | 2000 | 800 | 600 |
