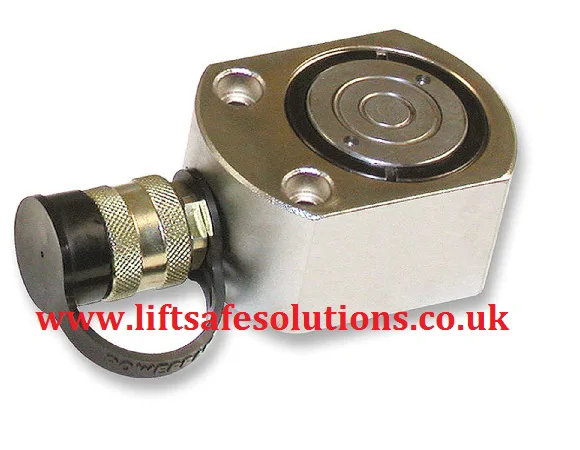

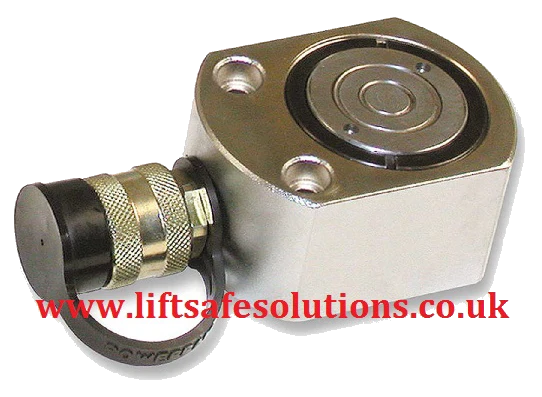

- Capacity Range: 1 tonne to 150 tonne
- Max Pressure 10`000PSI (700 BAR)
- Stroke Range: 6mm to 17mm
- Single Acting Spring Assisted Return
- Piston Hard Chromed
- Inside Re-Polished
- Outside Blasted & Chromed
| Product Code | SWL (tonne) | Stroke (mm) | Area of Force (cm2) | Oil Capacity (cm2) | Weight (kgs) |
|---|---|---|---|---|---|
| SLS50 | 5 | 6 | 6.5 | 4.5 | 1.0 |
| SLS100 | 10 | 12 | 14.5 | 18 | 1.4 |
| SLS200 | 20 | 12 | 28.7 | 34 | 3.1 |
| SLS300 | 30 | 13 | 42.1 | 54 | 4.5 |
| SLS500 | 45 | 16 | 62.1 | 102 | 6.8 |
| SLS750 | 75 | 16 | 102.6 | 166 | 11.3 |
| SLS1000 | 90 | 16 | 126.7 | 212 | 14.5 |
| SLS1500 | 150 | 17 | 198.1 | 342 | 26.3 |

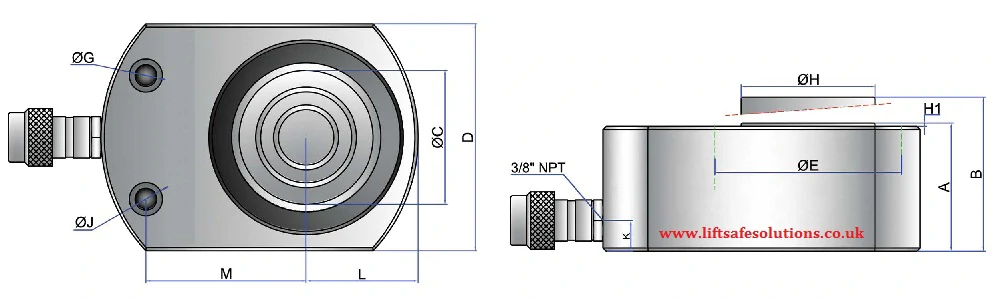

| Product Code | SWL (tonne) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | G (mm) | K (mm) | J (mm) | H1 (mm) | L (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLS50 | 5 | 33 | 39 | 28.5 | 58x41 | 31 | 25.4 | 5.5 | 16 | 9.5 | 1 | 20 | 22 |
| SLS100 | 10 | 42 | 54 | 36 | 82x55 | 44 | 38 | 7.5 | 19 | 11 | 1 | 28.5 | 34 |
| SLS200 | 20 | 51 | 63 | 49.3 | 101x76 | 60 | 50.8 | 10 | 19 | 15 | 1 | 39 | 39 |
| SLS300 | 30 | 58 | 71 | 52.3 | 117x95 | 73 | 63.5 | 10 | 19 | 16 | 2 | 47 | 44 |
| SLS500 | 45 | 66 | 82 | 66.5 | 140x114 | 90 | 70 | 11 | 19 | 19 | 2 | 55 | 55 |
| SLS750 | 75 | 79 | 95 | 76.2 | 165x140 | 115 | 82.5 | 13.5 | 19 | 20.5 | 2 | 69 | 66 |
| SLS1000 | 90 | 85 | 101 | 76.2 | 178x153 | 130 | 92 | 13.5 | 19 | 20.5 | 2 | 76 | 74 |
| SLS1500 | 150 | 100 | 116 | 117 | 216x190 | 160 | 115 | 13.5 | 19 | 23 | 2 | 95 | 82 |
Download PDF specification sheet
