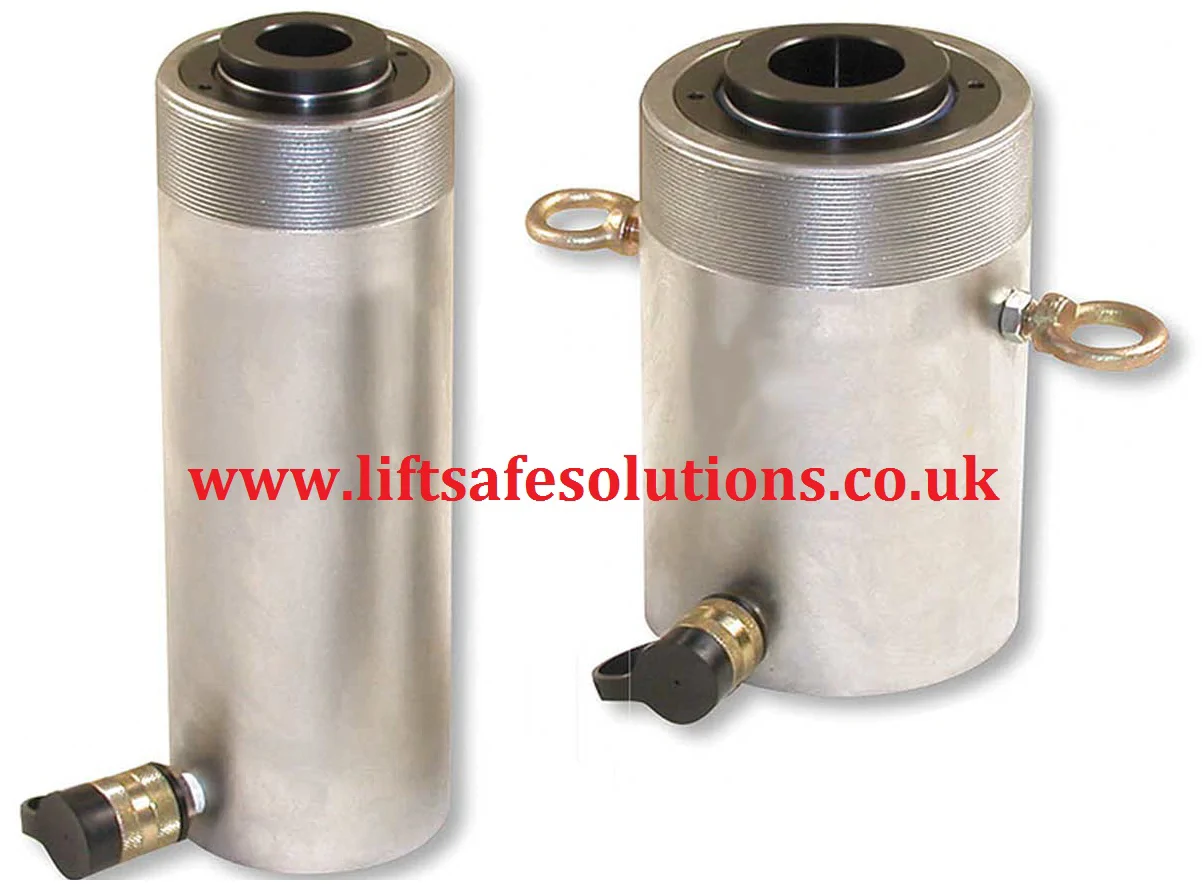

- Capacity Range: 13 tonne to 95 tonne
- Hollow Centre Series
- Max Pressure 10`000PSI (700 BAR)
- Stroke Range: 8mm to 95mm
- Single Acting Spring Assisted Return
- Piston Hard Chromed
- Inside Re-Polished
- Outside Blasted & Chromed
| Product Code | SWL (tonne) | Stroke (mm) | Area of Force (cm2) | Oil Capacity (cm2) | A (mm) | B (mm) | E ø (mm) | Weight (kgs) |
| SHS120 | 13 | 8 | 17.9 | 18 | 60 | 68 | 54.1 | 1.5 |
| SHS121 | 13 | 42 | 17.9 | 96 | 121 | 163 | 54.1 | 3 |
| SHS123 | 13 | 76 | 17.9 | 175 | 180 | 256 | 54.1 | 4.2 |
| SHS202 | 20 | 52 | 30.7 | 230 | 162 | 214 | 75 | 7.5 |
| SHS206 | 20 | 152 | 30.7 | 671 | 310 | 462 | 75 | 13.5 |
| SHS302 | 30 | 68.5 | 46.6 | 435 | 182 | 250.5 | 90 | 11 |
| SHS306 | 30 | 158 | 46.6 | 1005 | 332 | 490 | 90 | 20.4 |
| SHS603 | 60 | 76 | 82.3 | 932 | 247.5 | 323.5 | 125 | 26.4 |
| SHS606 | 60 | 153 | 82.3 | 1876 | 326.5 | 479.5 | 125 | 34 |
| SHS1003 | 95 | 83 | 133 | 1774 | 254 | 337 | 165 | 50.1 |

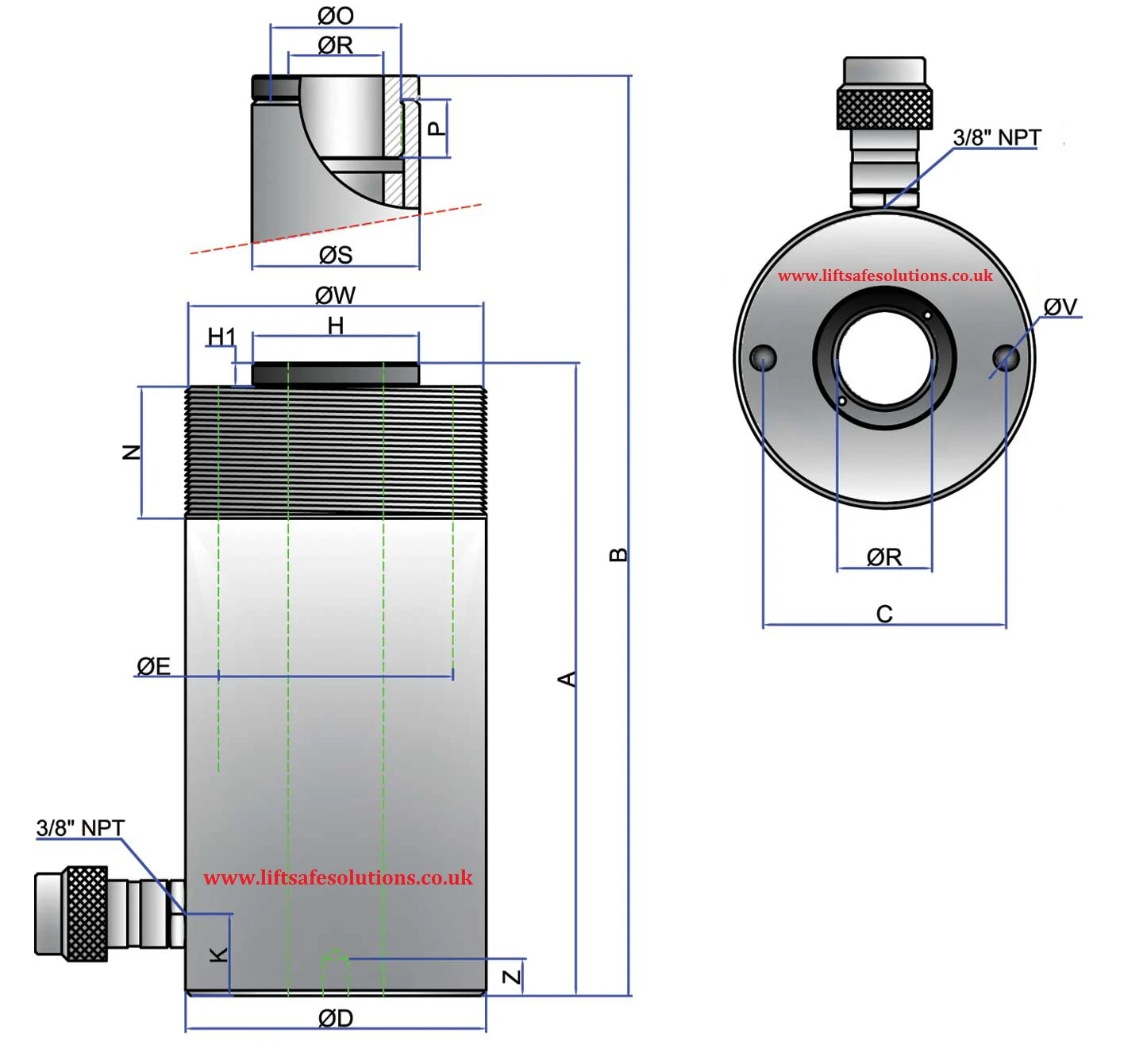

| Product Code | S (mm) | D (mm) | H1 (mm) | K (mm) | W ø (mm) | H (mm) | O ø (un) | P (mm) | N (mm) | Z (mm) | V ø (UNC) | C (mm) | R ø (mm) Centre Hole |
| SHS120 | 35 | 73 | - | 11.5 | 2-3/4" - 16 | - | 3/4"-16 | 16 | 30 | 9 | 5/16"-18 | 50.8 | 19.5 |
| SHS121 | 35 | 73 | - | 19 | 2-3/4" - 16 | - | 3/4"-16 | 16 | 30 | - | - | - | 19.5 |
| SHS123 | 35 | 73 | - | 19 | 2-3/4" - 16 | - | 3/4"-16 | 16 | 30 | 12.7 | 5/16"-18 | 50.8 | 19.5 |
| SHS202 | 54.9 | 100 | 9 | 19 | 3-7/8" - 12 | 54 | 1-9/16"-16 | 19 | 38 | 9.4 | 3/8"-16 | 82.6 | 27 |
| SHS206 | 54.9 | 100 | 9 | 19 | 3-7/8" - 12 | 54 | 1-9/16"-16 | 19 | 38 | 9.4 | 3/8"-16 | 82.6 | 27 |
| SHS302 | 65 | 114 | 10 | 23 | 4-1/2" - 12 | 63 | 1-7/8"-16 | 22 | 42 | 14 | 3/8"-16 | 92 | 36 |
| SHS306 | 65 | 114 | 10 | 25 | 4-1/2" - 12 | 63 | 1-7/8"-16 | 22 | 42 | 14 | 3/8"-16 | 92 | 36 |
| SHS603 | 90 | 158.6 | 12.5 | 32 | 6-1/4" - 12 | 89 | 2-3/4"-16 | 22 | 50 | 14 | 1/2"-12 | 130 | 54 |
| SHS606 | 90 | 158.6 | 12.5 | 32 | 6-1/4" - 12 | 89 | 2-3/4"-16 | 22 | 50 | 14 | 1/2"-12 | 130 | 54 |
| SHS1003 | 125 | 213 | 12 | 38 | 8-3/8" - 12 | 125 | 4"-16 | 28 | 60 | 19 | 5/8"-11 | 178 | 79 |
