Eyebolts & Lifting Eyes

Collared Eyebolts complete with Short Shank and Metric Thread

Collared Eyebolts - BS4278 part 1 1984. Complete with a short shank with metric thread these drop forged Collered Eyebolts are supplied as standard in a self colour finish, but are also available in a Galavanised finish on request. Collared Eyebolts are widely used in many lifting applications for a safe means of providing a lifting point on a load to which lifting equipment can be attached.

01427 891115

Supplied with full certification, ready to go straight into service
Supplying industry throughout the UK
LEEA Full Member

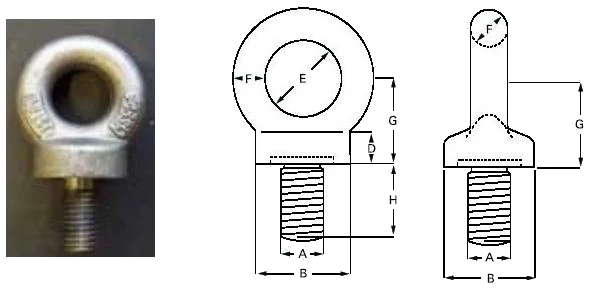

Collared Eyebolt complete with a Short Shank and Metric Thread

S.W.L. Tonnes	A mm	B mm	D mm	E mm	F mm	G mm	H mm
0.10	M6	22	7	15	9	20	18
0.15	M8	22	7	15	9	20	18
0.25	M10	22	7	15	9	20	18
0.40	M12	22	7	15	9	20	18
0.80	M16	29	10	20	12	26	23
1.00	M18	36	12	24	14	32	28
1.60	M20	40	14	27	16	36	32
1.60	M22	45	15	30	18	40	35
2.50	M24	52	17	35	21	46	40
4.00	M30	65	22	44	26	58	51
5.00	M33	72	24	48	28	64	56
6.30	M36	81	27	54	32	72	63
6.30	M39	90	30	60	36	80	70
8.00	M42	101	34	68	40	90	79
8.00	M45	101	34	68	40	90	79
10.00	M48	101	34	68	40	90	79
12.50	M52	115	38	76	46	102	89

More eyebolts & lifting eyes

View all

Collared Eyebolts – Long ShankCollared Eyebolt Long Shank Metric · More detailsView range

Can't see the product you need?

Not all the products available are on our web site. If you don't see the product you require, let our sales team find it for you.

Email our sales team 01427 891115
