Eyebolts & Lifting Eyes
Collared Eyebolts - BS529 part 1 1944. Complete with a long shank with metric thread these drop forged Collered Eyebolts are supplied as standard in a self colour finish. Collared Eyebolts are widely used in many lifting applications for a safe means of providing a lifting point on a load to which lifting equipment can be attached.

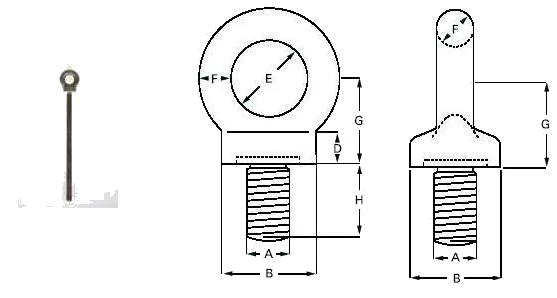

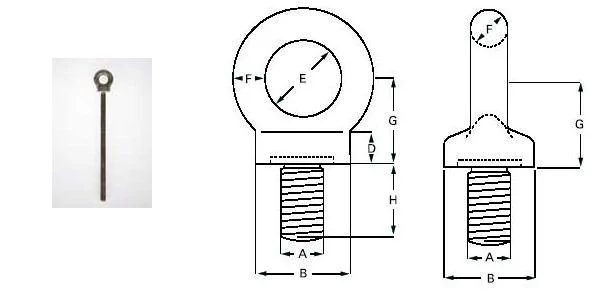

Collared Eyebolt complete with a Long Shank and Metric Thread
S.W.L.Tonnes | Amm | Bmm | Dmm | Emm | Fmm | Gmm | Hmm |
|---|---|---|---|---|---|---|---|
| 0.33 | M10 | 22 | 8 | 14 | 10 | 20 | 178 |
| 0.40 | M12 | 28 | 10 | 19 | 11 | 25 | 178 |
| 0.80 | M16 | 36 | 12 | 24 | 14 | 32 | 178 |
| 1.60 | M20 | 43 | 14 | 28 | 17 | 38 | 178 |
| 1.60 | M22 | 50 | 17 | 33 | 20 | 44 | 178 |
| 2.50 | M24 | 57 | 19 | 38 | 22 | 51 | 178 |
| 4.00 | M30 | 71 | 24 | 48 | 28 | 64 | 178 |
