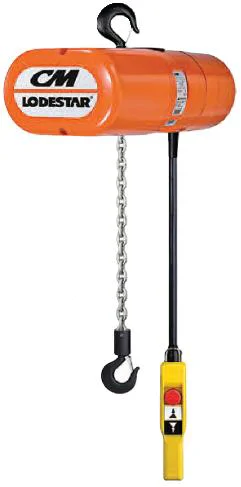

CM, Lodestar Electric chain hoist
Lifting capacities 250kgs - 3000kgs
The Lodestar hoist is a tough and durable electric chain hoist, designed to keep working in the most arduous applications. This hoist is recognised and proven within the hire industry as the number one hoist, where high duty, combined with long heights of lift are required. From hook suspension in the rental industry to trolley mounted in a factory production line, the Lodestar has a proven reputation as the solution for industrial strength lifting.
Standard operating voltage: 110v 1ph 50Hz, 240v 1ph 50Hz and 400v 3ph 50Hz available ex-stock.
Features include:
• Tough lightweight aluminium alloy covers totally enclose the mechanical and electrical components providing protection and efficient heat dissipation. Design enables easy access for installation & service.
• Adjustable upper and lower limit switches.
• 48v control, IP65 pendant as standard.
• Thermal overload protection as standard.
• FEM classification 2m (50% duty - 30 minutes continuous use per hour).
• Excellent closed height dimensions.
• A lifetime lubricated gearbox contributes to exceptional service and maintenancecharacteristics.
• Single phase hoist supplied with handles and 1 mtr supply cable with Cee-Form plug.
• 3-phase single speed hoist motors are dual voltage.
• Load hook with axial bearing.
| Model | Capacity kgs | Number of chain falls m/min | Chain size d x p | Hoist speed m/min | Frame type | Closed height mm | Weight @ standard hook susp. 3mtr HOL kgs |
|---|---|---|---|---|---|---|---|
| CMLS250/230-8 | 250 | 1 | 6.3 x 18.9 | 8 | C | 413 | 29 |
| CMLS250/110-8 | 250 | 1 | 6.3 x 18.9 | 8 | C | 413 | 30 |
| CMLS500/230-4 | 500 | 1 | 6.3 x 18.9 | 4 | F | 413 | 28 |
| CMLS500/110-4 | 500 | 1 | 6.3 x 18.9 | 4 | F | 413 | 29 |
| CMLS500/230-8 | 500 | 1 | 7.9 x 21.7 | 8 | J | 471 | 51 |
| CMLS500/110-8 | 500 | 1 | 7.9 x 21.7 | 8 | J | 471 | 52 |
| CMLS1000/230-8 | 1000 | 1 | 7.9 x 21.7 | 4 | L | 471 | 52 |
| CMLS1000/110-8 | 1000 | 1 | 7.9 x 21.7 | 4 | L | 471 | 53 |
| CMLS2000/230-8 | 2000 | 2 | 7.9 x 21.7 | 2 | R | 613 | 58 |
| CMLS2000/110-8 | 2000 | 2 | 7.9 x 21.7 | 2 | R | 613 | 59 |
| CMLS3000/230-8 | 3000 | 3 | 7.9 x 21.7 | 1.33 | RT | 751 | 70 |
| CMLS3000/110-8 | 3000 | 3 | 7.9 x 21.7 | 1.33 | RT | 751 | 80 |
