Karabiners

RidgeGear Karabiners

A Karabiner is a metal loop with a sprung gate and is used to quickly connect components in fall protection systems.

01427 891115
  • Full traceability and certification
  • Supplying industry throughout the UK
  • LEEA Full Member
RidgeGear Fall Protection Range

Locking the sprung gate of the Karabiners may be by either a threaded ("screw-lock") or spring-loaded ("twist-lock").

Screw-lock: Have a threaded sleeve over the gate which must be engaged and disengaged manually.

Twist-lock: Have a security sleeve which must be manually rotated to disengage, but which springs closed automatically upon release.

RGK1

RGK1 Karabiner

  • Closure type: Screw Gate
  • Gate Opening: 17mm
  • MBL: 25kN
  • Material: Steel

RGK2

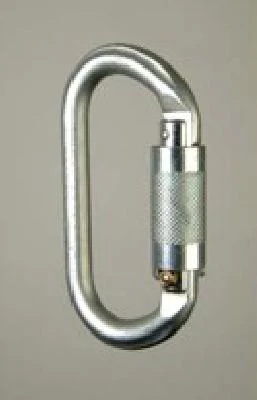

RGK2 Karabiner

  • Closure type: Twistlock
  • Gate opening: 20mm
  • MBL: 25kN
  • Material: Steel

RGK3

RGK3 Karabiner

  • Closure type: Twistlock
  • Gate opening: 25mm
  • MBL: 40kN
  • Material: Steel

RGK4

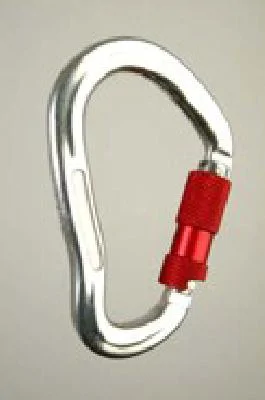

RGK4 Karabiner

  • Closure type: Twistlock
  • Gate opening: 25mm
  • MBL: 28kN
  • Material: Aluminium

RGK5

RGK5 Large Karabiner

  • Closure type: Twistlock
  • Gate Opening: 57mm
  • MBL:35kN
  • Material: Steel

RGK6

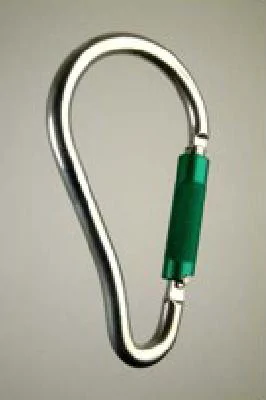

RGK6 Large Karabiner

  • Closure type: Twistlock
  • Gate Opening: 57mm
  • MBL:23kN
  • Material: Aluminium

RGK7

RGK7 Spring Hook

  • Closure type: Self Spring
  • Gate Opening: 105mm
  • MBL:22kN
  • Material: Stainless Steel

RGK8

RGK8 Spring Hook

  • Closure type: Self Spring
  • Gate Opening: 140mm
  • MBL:22kN
  • Material: Stainless Steel

RGK10

RGK10 Double Action Snap Hook

  • Closure type: Double Action Snap
  • Gate Opening: 20mm
  • MBL:22kN
  • Material: Steel

RGK11

RGK11 Large Double Action Snap Hook

  • Closure type: Double Action Snap
  • Gate Opening: 60mm
  • MBL:22kN
  • Material: Aluminium

RGK12

RGK12 Triangular Link

  • Closure type: Screw Gate
  • Gate Opening: 11mm
  • MBL:22kN
  • Material: Steel
